Type 3241 Globe Valve

Type 3241 Globe Valve

Series 240-Globe Valve Type 3241 Control valve for process engineering and industrial ...

Category : Pneumatic Control valve

Brand :

Series 240- Globe Valve Type 3241
Control valve for process engineering and industrial
applications
Valve size ½” to 12”
Pressure rating ANSI Class 125 to 300
Temperatures –320 to 842 °F · –196 to 450 °C

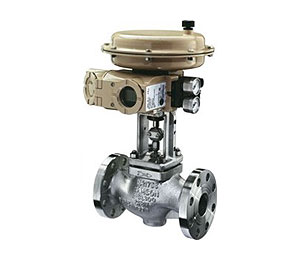

Type 3241 Globe Valve with:
• Type 3271 Pneumatic Actuator (Type 3241-1 Control Valve)
• Type 3277 Pneumatic Actuator (Type 3241-7 Control Valve)

Valve body manufactured of:
• Cast iron
• Carbon steel, stainless or cold-resisting carbon steel
• Forged steel or forged stainless steel
• Special materials

Undivided valve bonnet in valve sizes up to 6”
Valve plug with:
• Metal sealing
• Soft sealing
• Lapped-in metal

The control valves are designed according to the modular assembly
principle and can be equipped with various accessories:
Positioners, limit switches, solenoid valves and other accessories
according to IEC 60534-6 and NAMUR recommendation.
See Information Sheet T 8350 EN for details.
